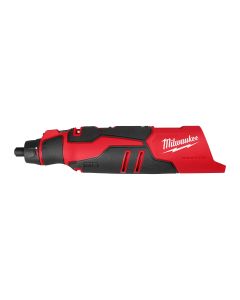

The Reminder of Using Milwaukee M12 BLROT ─ M12™ Brushless Rotary Tool

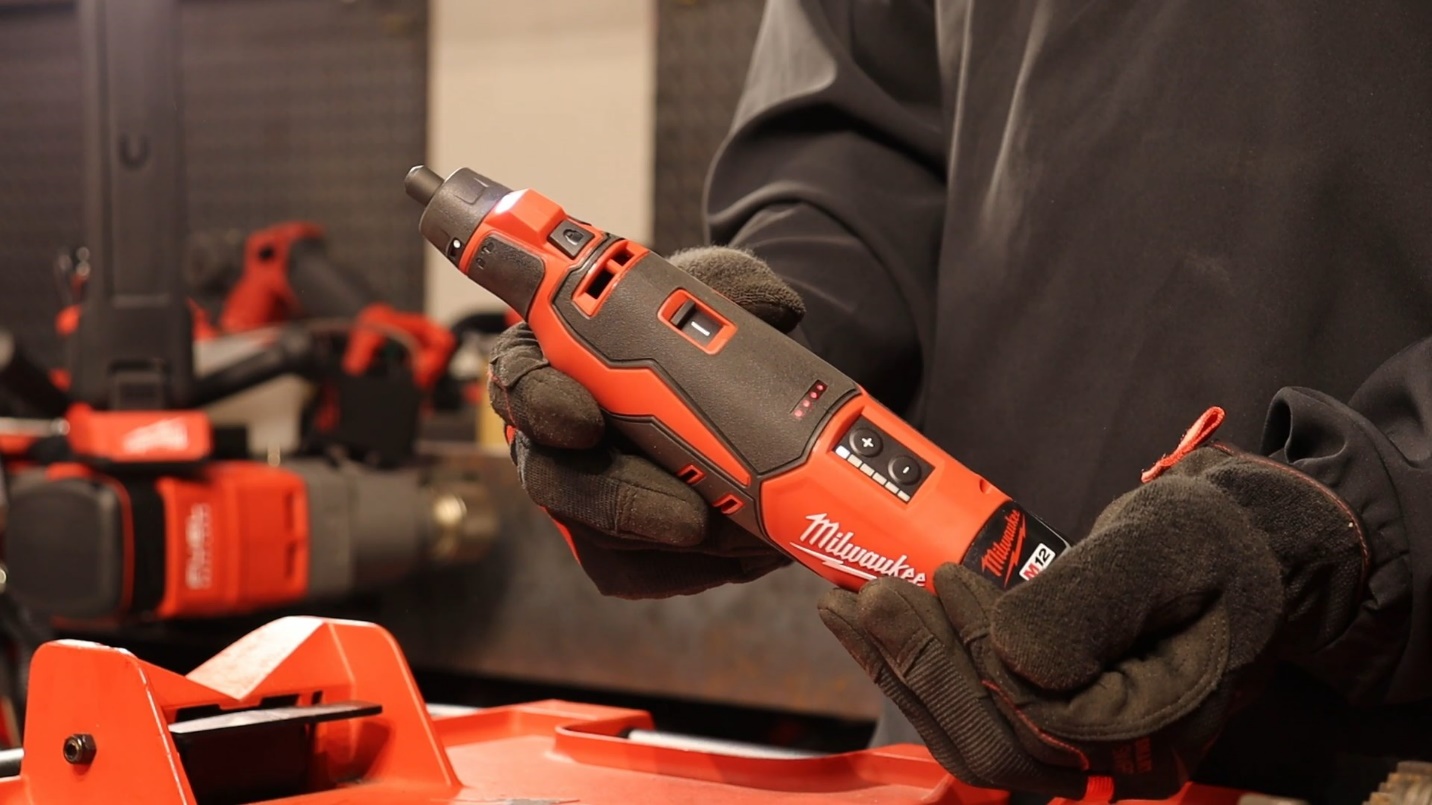

Before getting started
Push the button to “I” mode

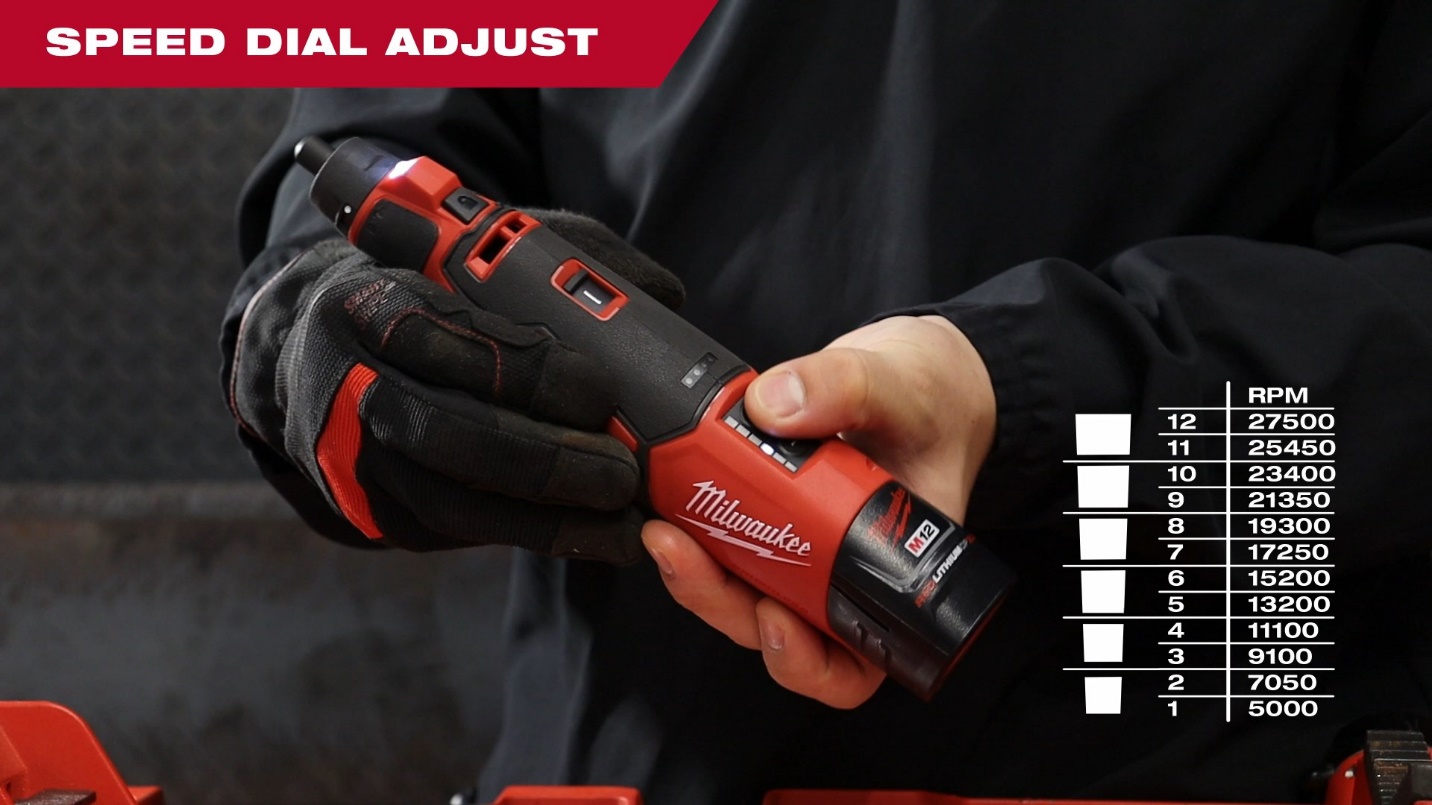

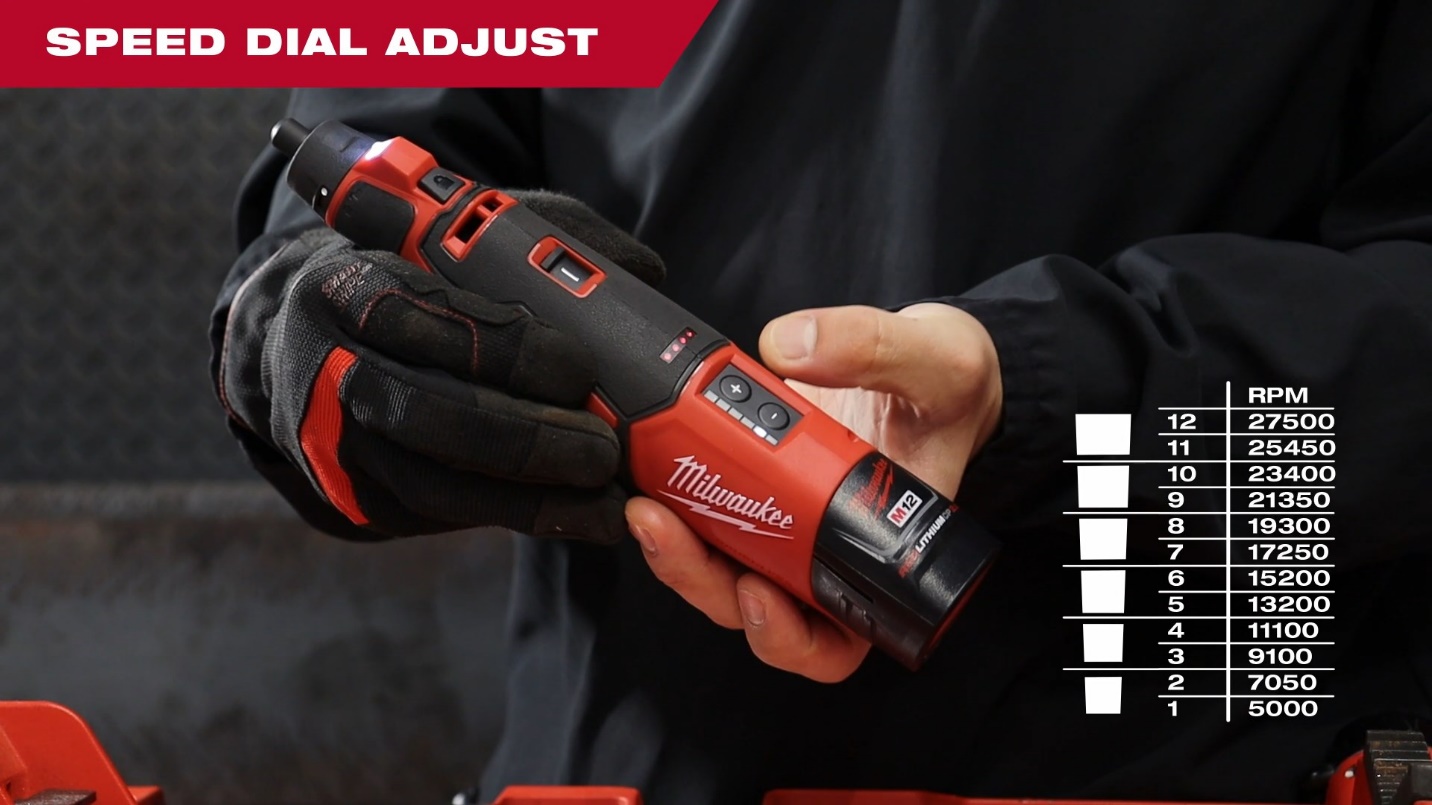

Speed Dial Adjust
M12™ Brushless Rotary Tool has 12 speeds in total, there are 6 speed indicators onboard, each indicator represents 2 speeds. Take counting from speed 1 (5000 RPM) as example, the first speed indicator will be flashing. Press the "+" button once and the speed will increase to speed 2 (7050 RPM), the first speed indicator will still be flashing. Press the "+" button again, the speed will increase to speed 3 (9100 RPM), the second speed indicator will be flashing. Detailed speed information please refer to below image.

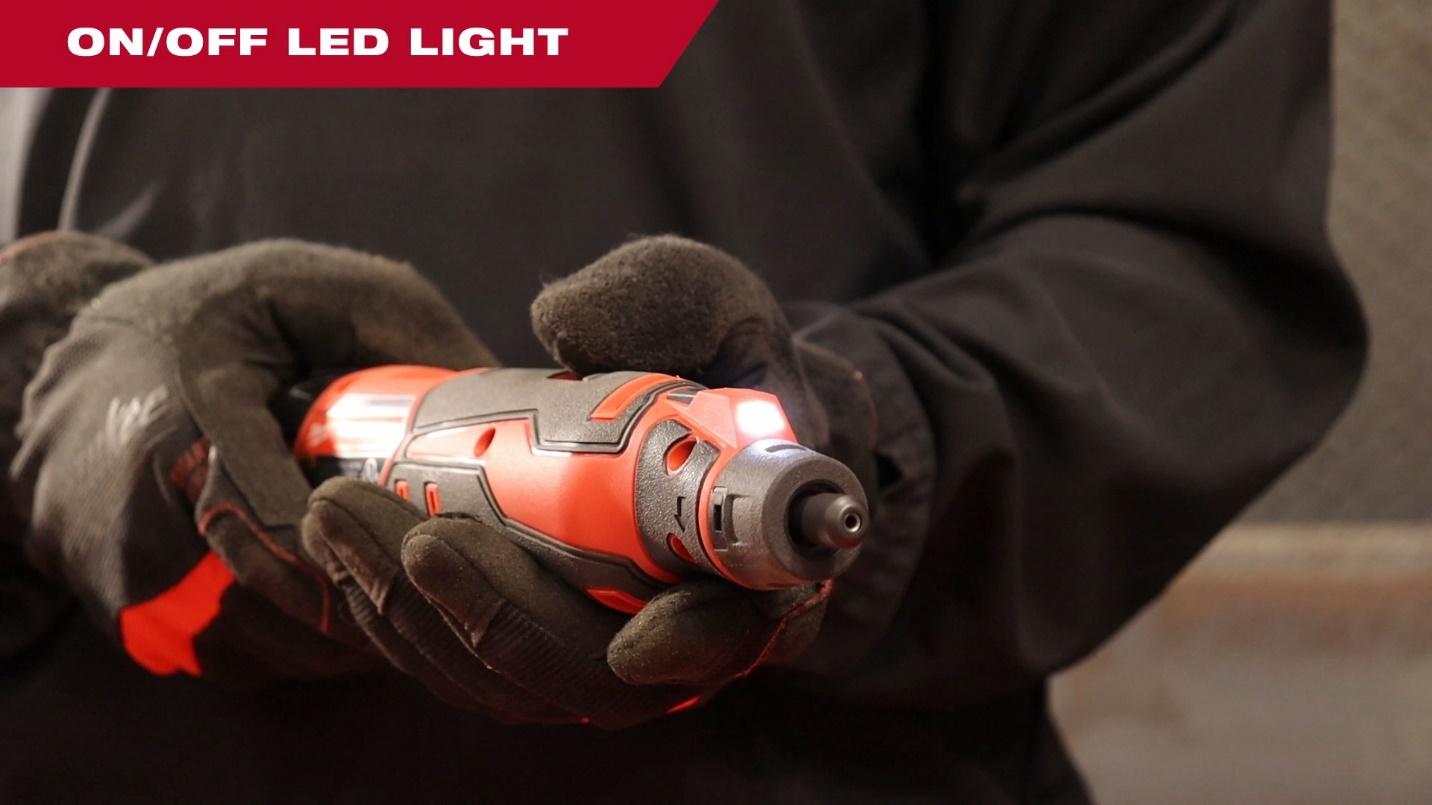

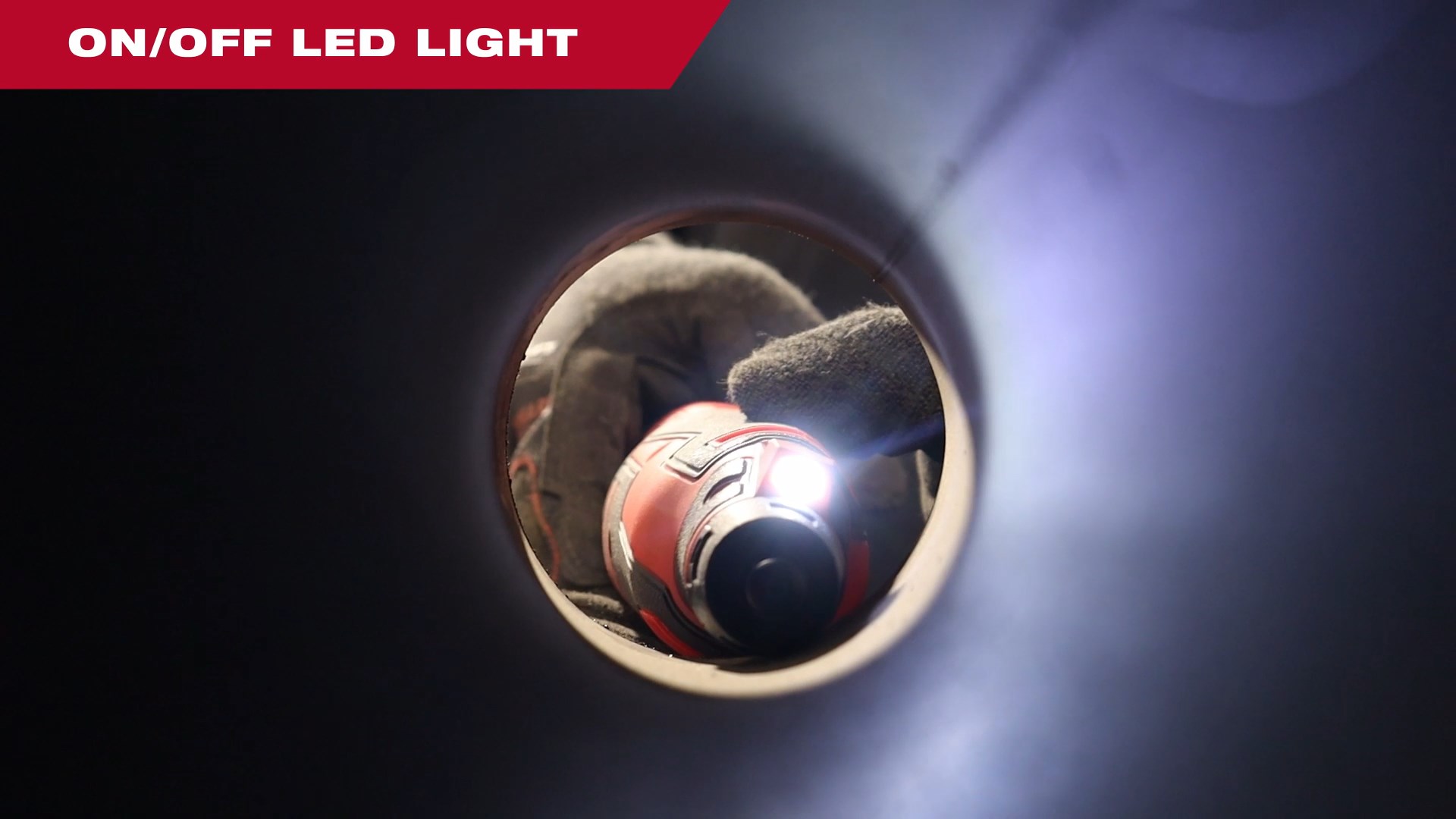

ON/OFF LED Light

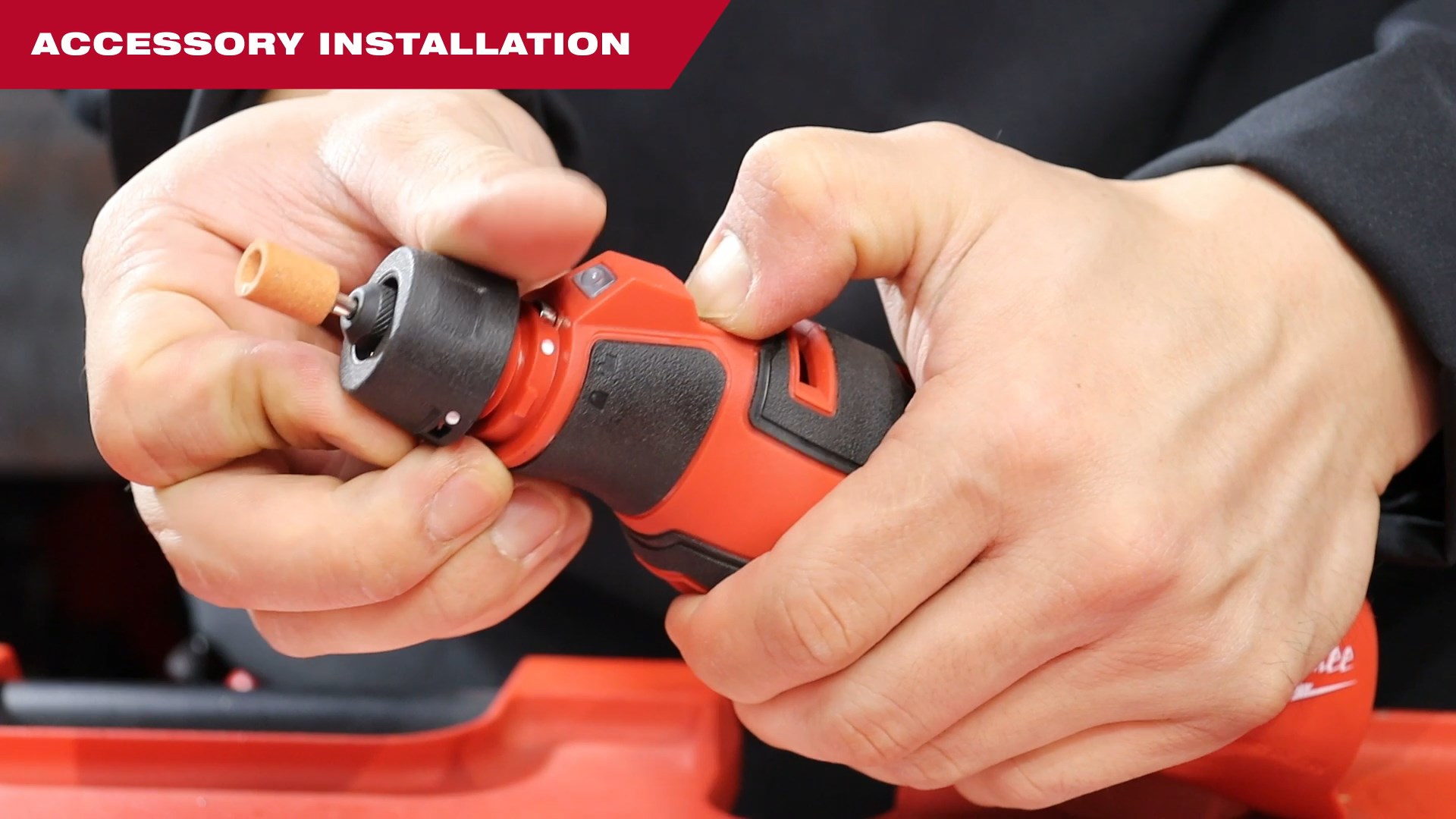

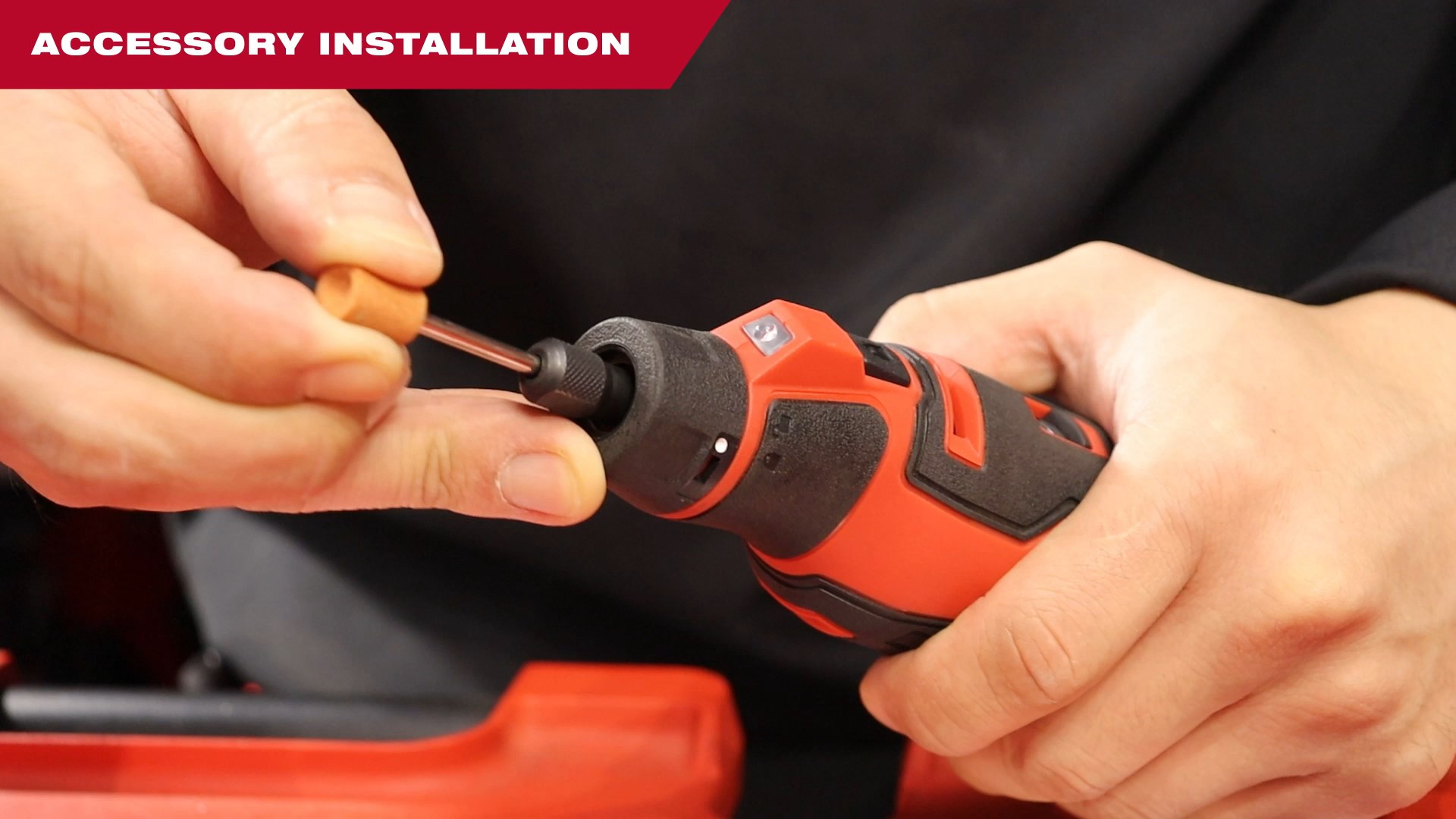

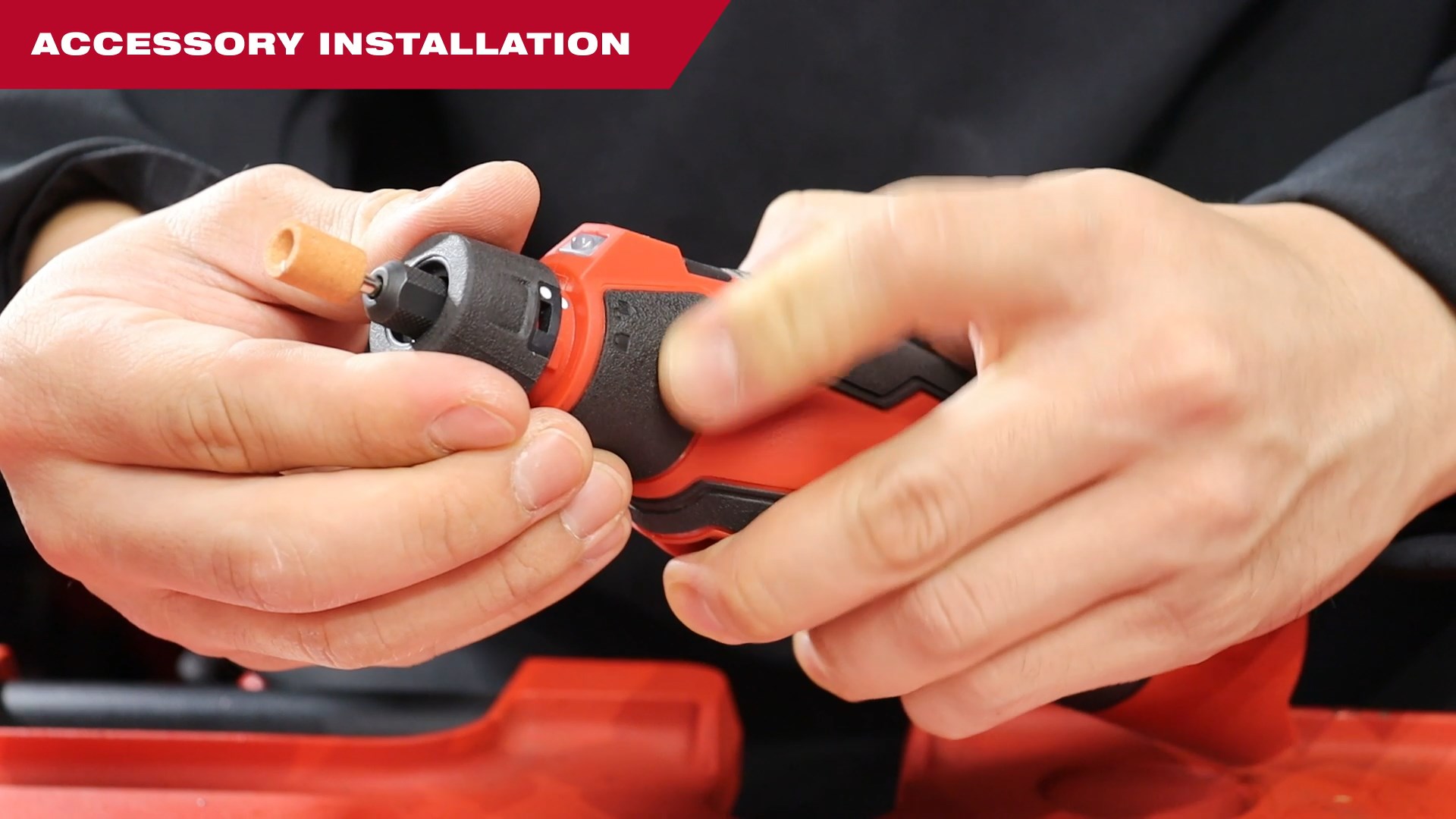

Accessory Installation
Step 1
Plug in to the hole at the front (Compatible with 0.8/1.6/2.4/3.2 MM collect diameter)

Step 2
Use integrated collect wrench for quick accessory fastening
Press the lock button, turn the integrated collect wrench right to take out the wrench

Step 3
Fasten accessory

Application Demonstration

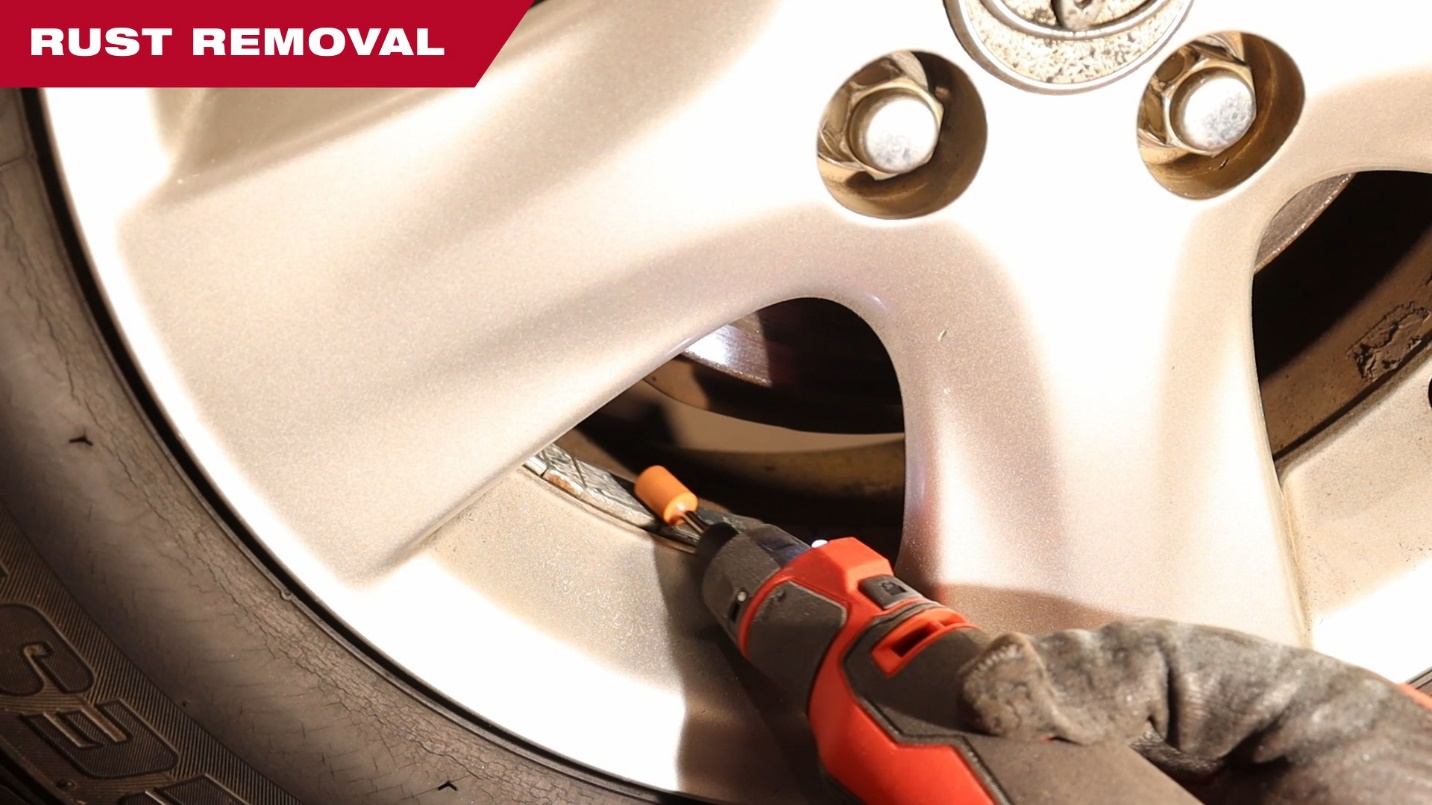

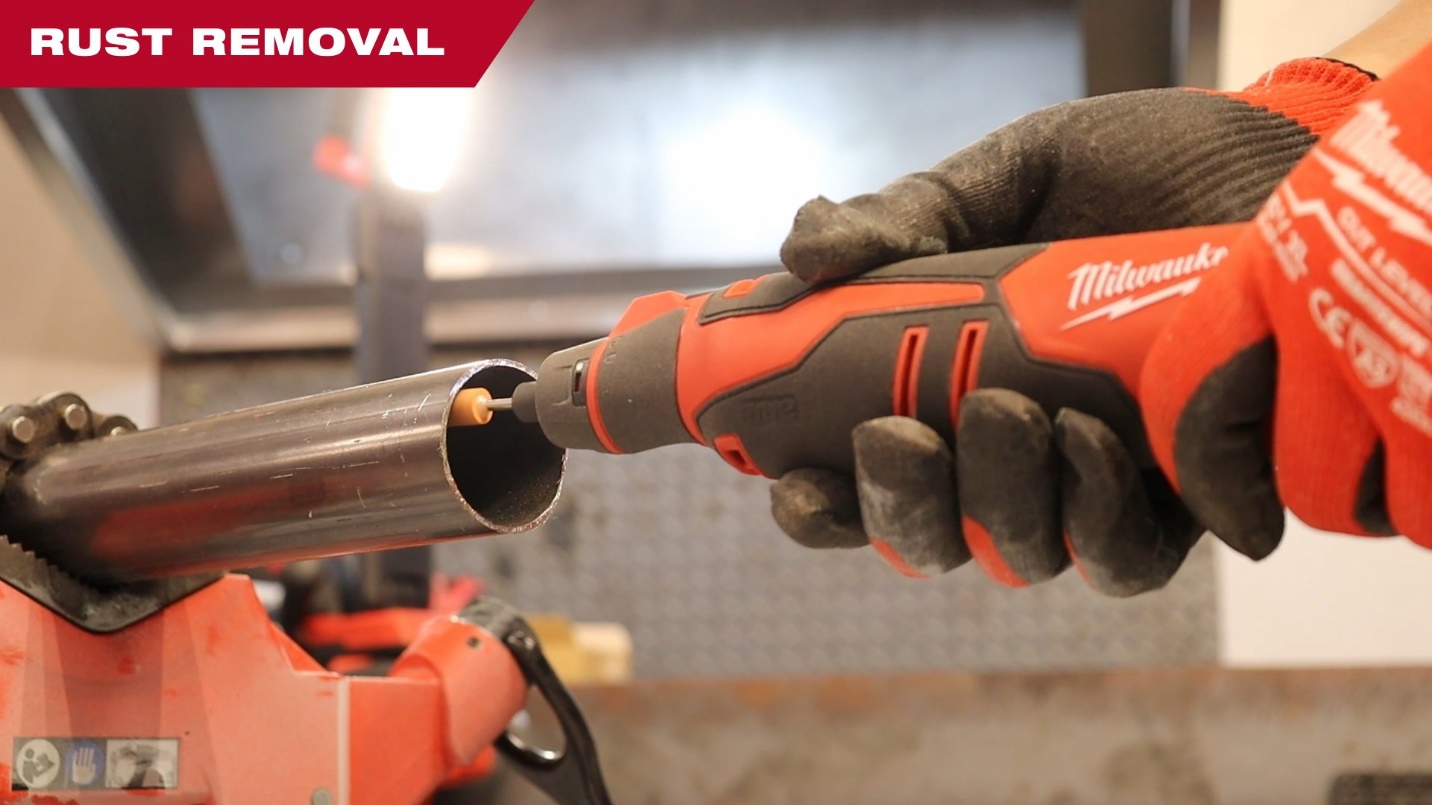

Rust removal

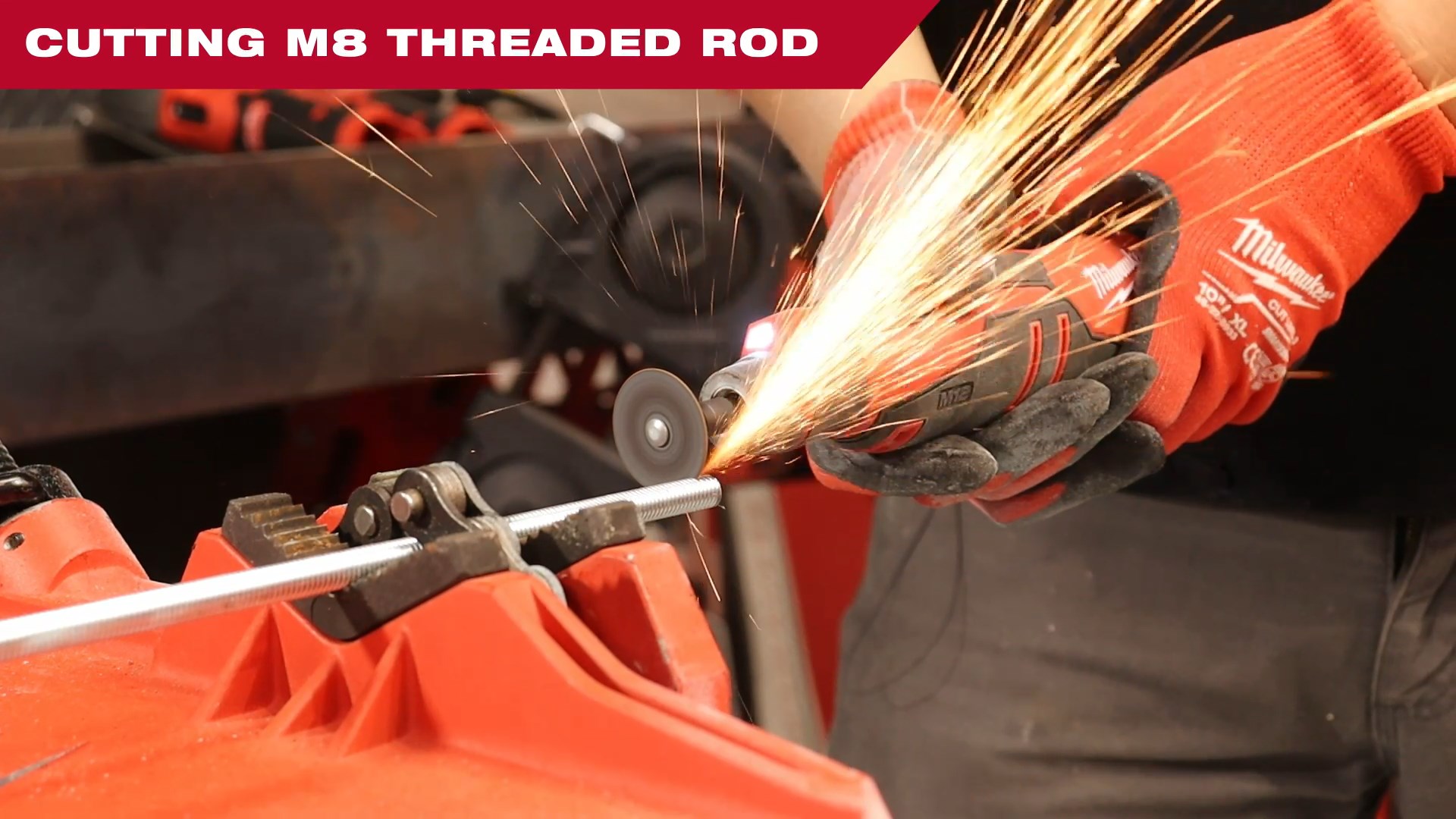

Cutting M8 threaded rod

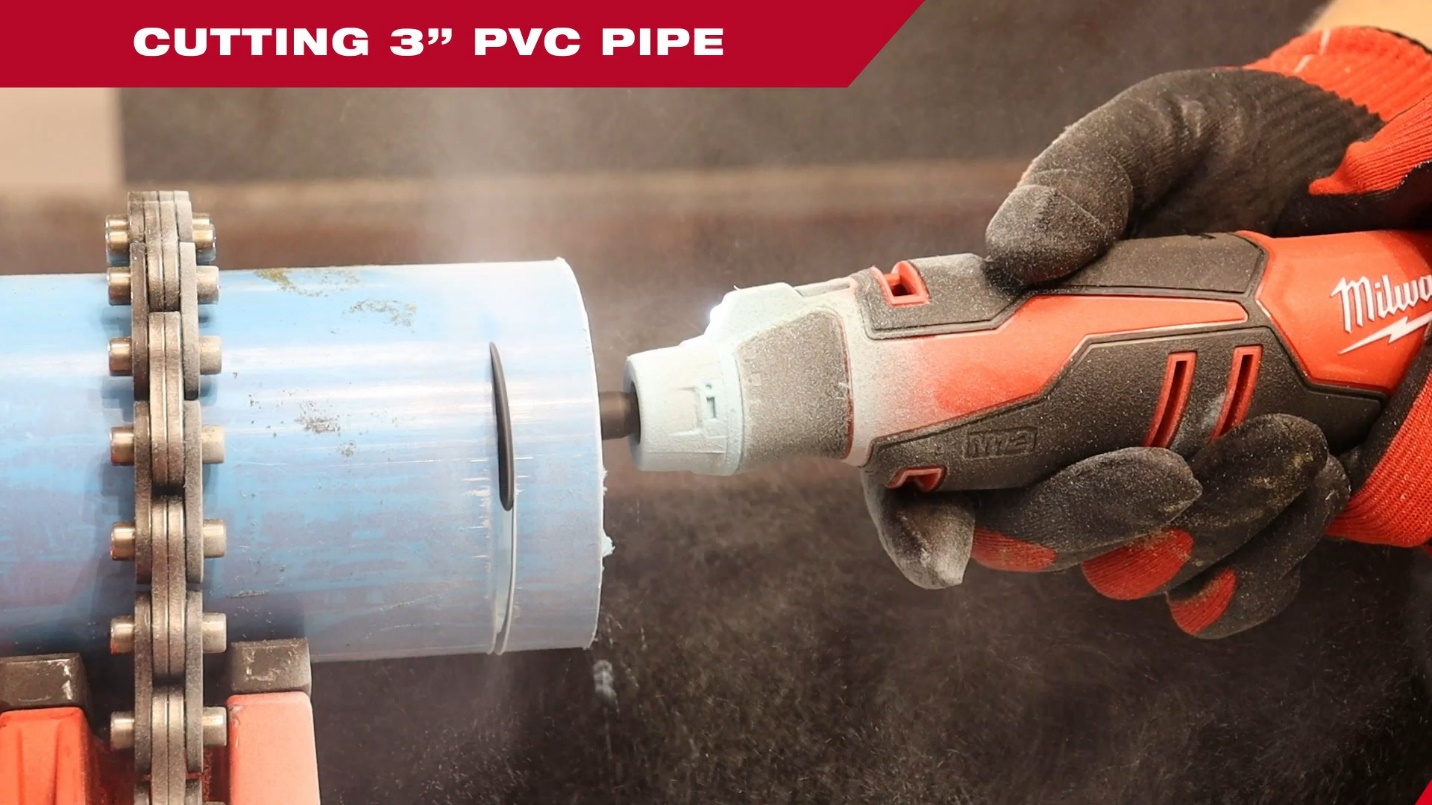

Cutting 3” PVC Pipe
