MOST
PORTABLE
3 METER LIGHT
INSIDE/OUTSIDE
UP TO
27,000

LUMENS OF
TASK OR AREA
LIGHTING
*IN AC MODE
WITHSTANDS
THE STORM OF
UP TO 55 km/h WINDS
WITH IP 55 RATING
*IN DC MODE

TOWER
LIGHT/CHARGER

MXF TL-0

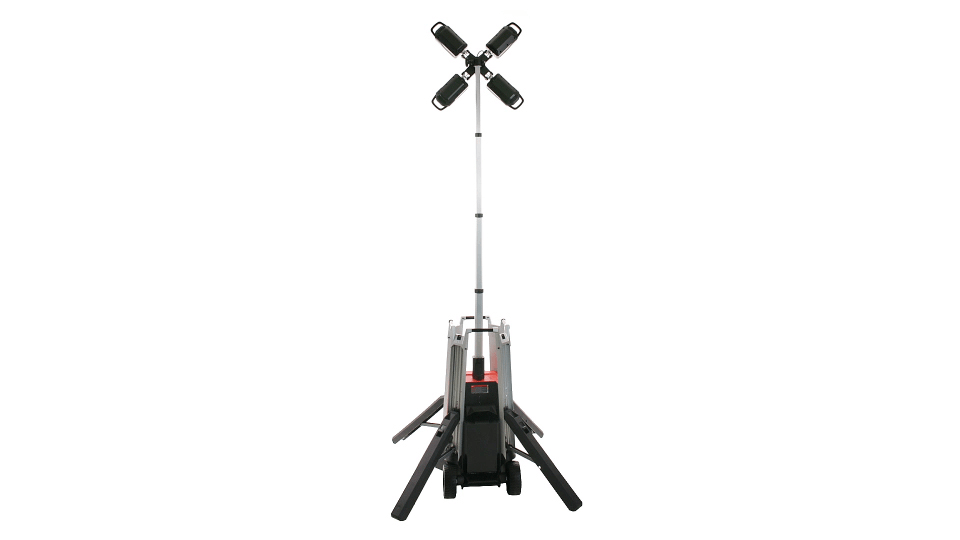

PORTABLE 3 METER LIGHT INSIDE/ OUTSIDE


UP TO 27,000 LUMENS OF TASK OR AREA LIGHTING

*IN AC MODE

WITHSTANDS THE STORM OF UP TO 55 km/h WINDS WITH IP 55 RATING

*IN DC MODE

MX FUEL TECHNOLOGY

Click a Number for Details



SPECIFICATION

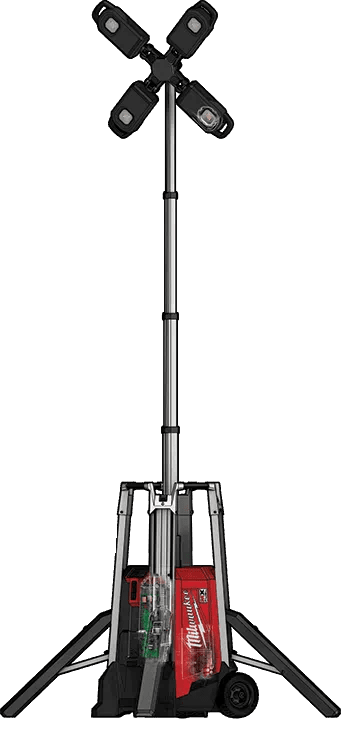

Four Adjustable Light Heads

Four adjustable light heads provide up to 27,000 lumens for both task and area lighting. With the ability to maneuver the light heads in multiple orientations, you can direct light to wherever it’s needed.

Wheeled Base Design

20 cm all-terrain wheels provides easier transportion across uneven terrain with less effort.

Motorized Mast

Capable of being set up in seconds, the adjustable light heads can be extended to 3 meters by the motorized mast to light overhead work or minimize shadows when casting light downward. Its portability provides increased efficiency on the jobsite, as it can collapse down to 1.11 meters for easy transportation and storage.

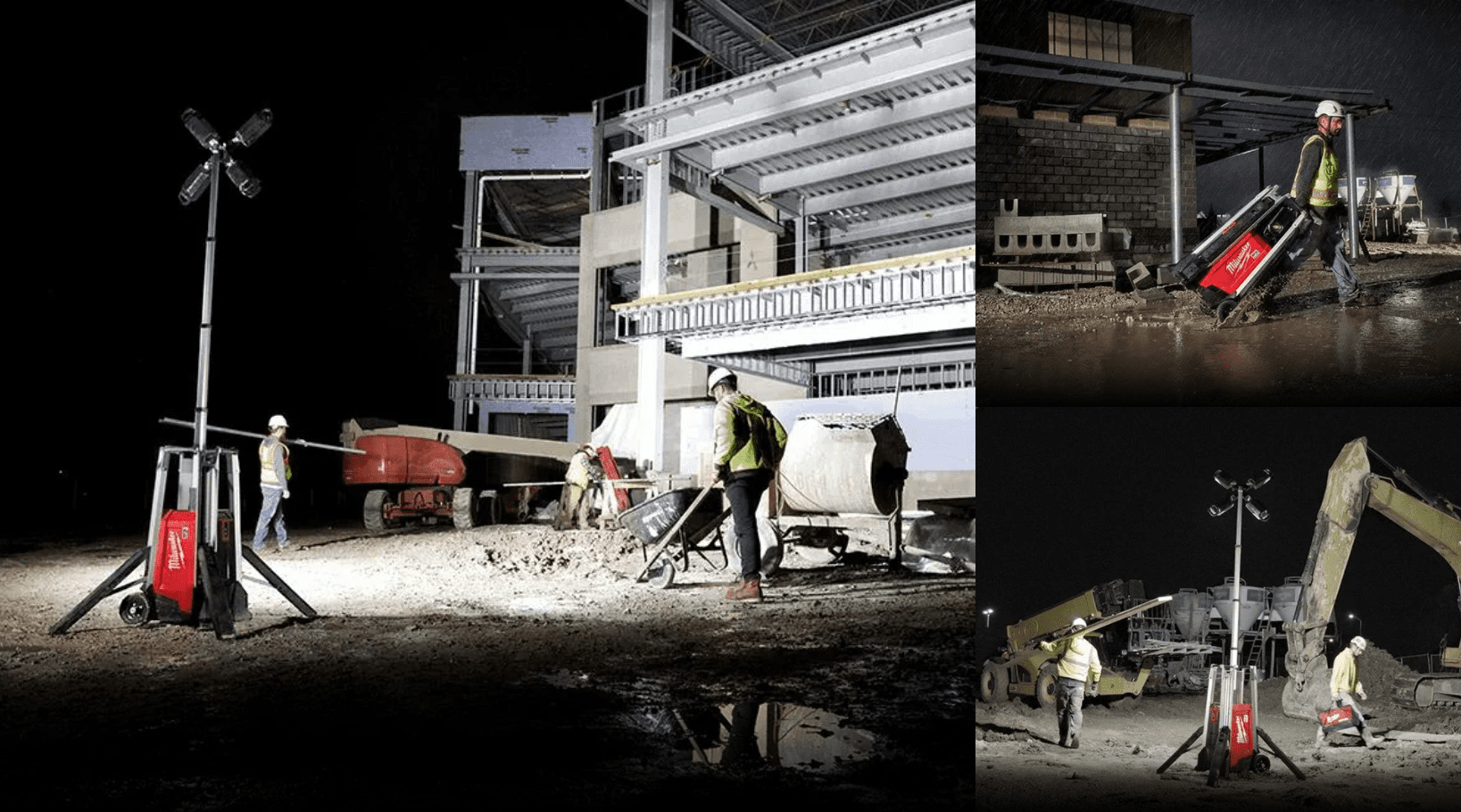

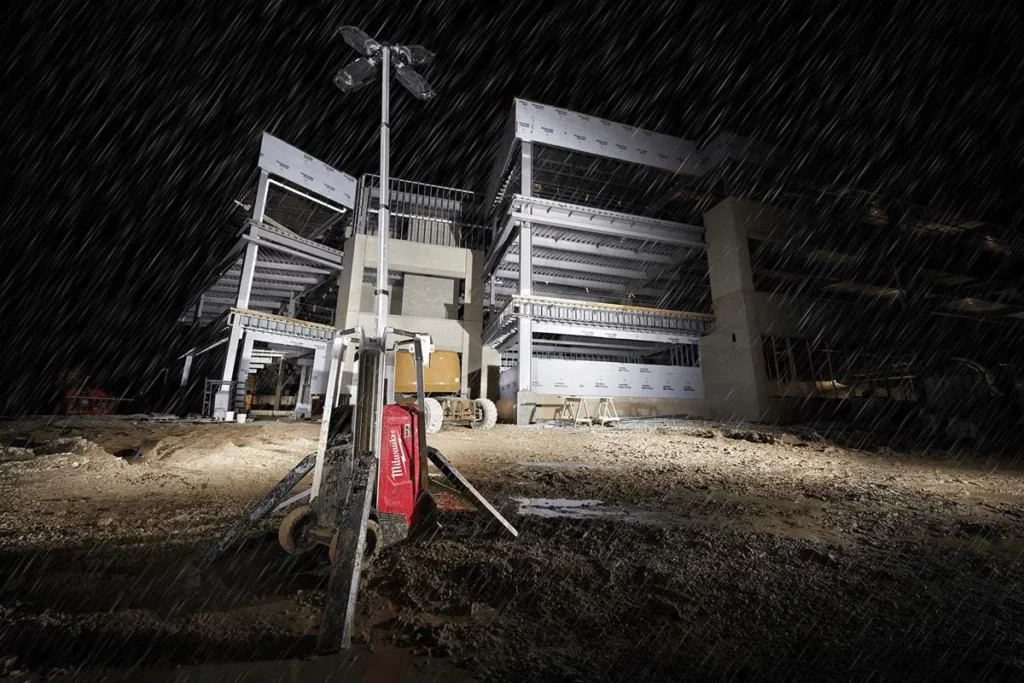

Rated For Outdoor Use

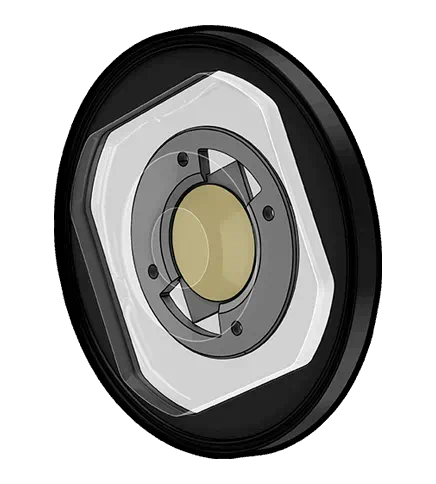

Built to thrive in the toughest conditions, the MX FUEL Tower Light is built with a durable, high-impact polycarbonate lens that delivers superior impact durability. Impact-resistant, reinforced legs and low center of gravity provide a stable base to provide stability on uneven surfaces, and four outriggers provide stability on uneven terrain. This tower light has and IP 55 rating (in DC Mode) and can withstand winds up to 55 km/h.



BATTERY PLATFORM
MX FUEL
INGRESS RATING
IP 55 IN DC MODE
LUMENS (AC): HIGH/ MED/ LOW
27,000/ 14,000/ 7,000
INTEGRATED CHARGER
Yes
LUMENS (DC): HIGH/ MED/ LOW
20,000/ 10,000/ 5,000
CHARGING TIME (MXF XC406)
90 min
COLLAPSED HEIGHT
1.11 meters
RUN-TIME HRS (DC): HIGH/ MED LOW
3/ 6/ 10
EXTENDED HEIGHT
3 meters
PUSH BUTTON ACTIVATION
Yes
LENGTH
628 mm
POWERED MAST
Yes
WIDTH
527 mm
DOWNLOADS
Download Operator’s Manual
WEIGHT WITHOUT BATTERY
48 kg

COMMONLY USED WITH

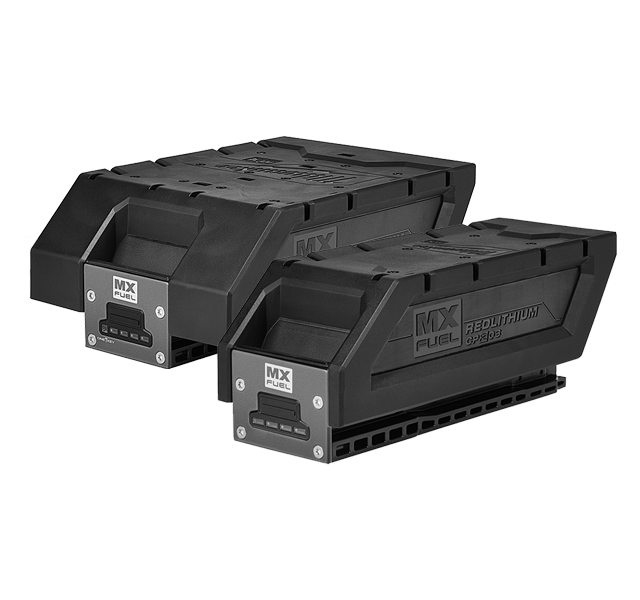

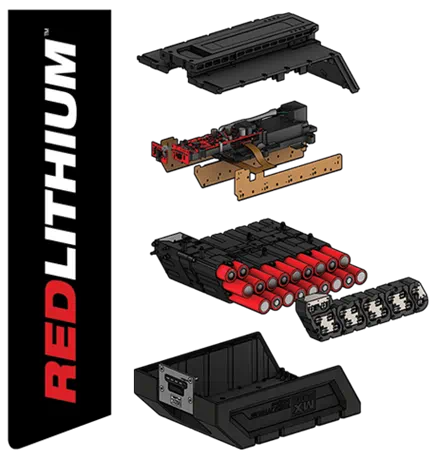

MX FUEL REDLITHIUM BATTERY PACK
