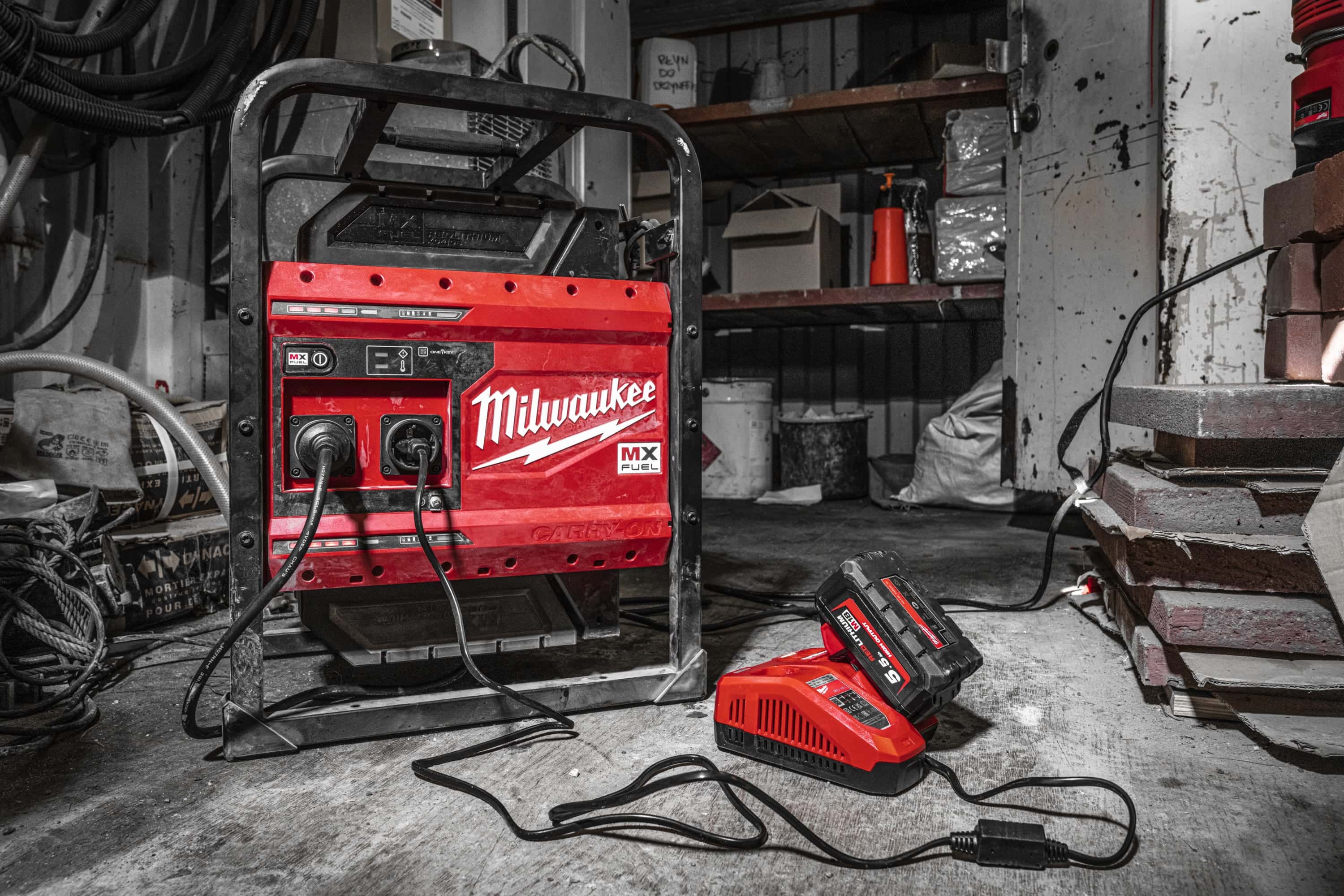

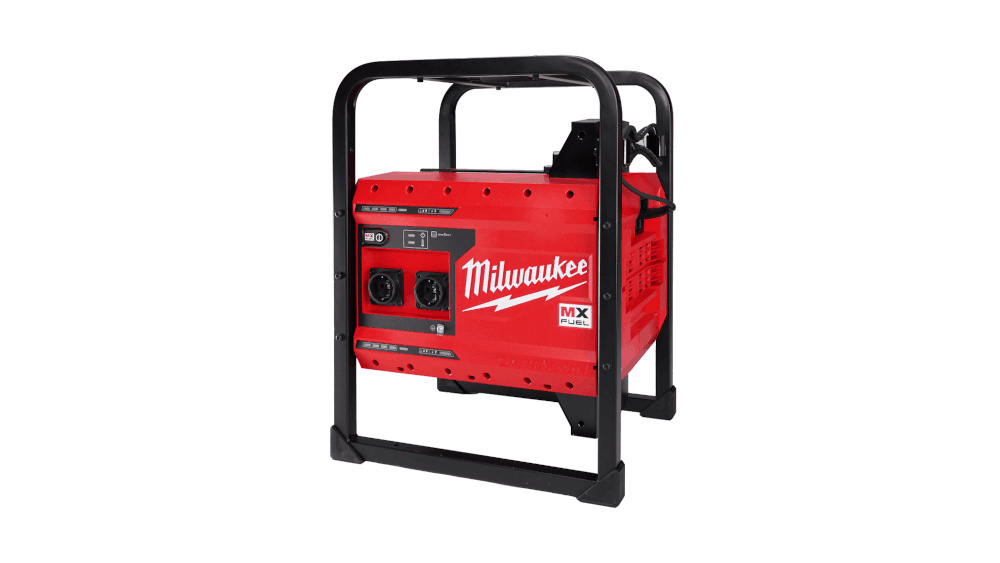

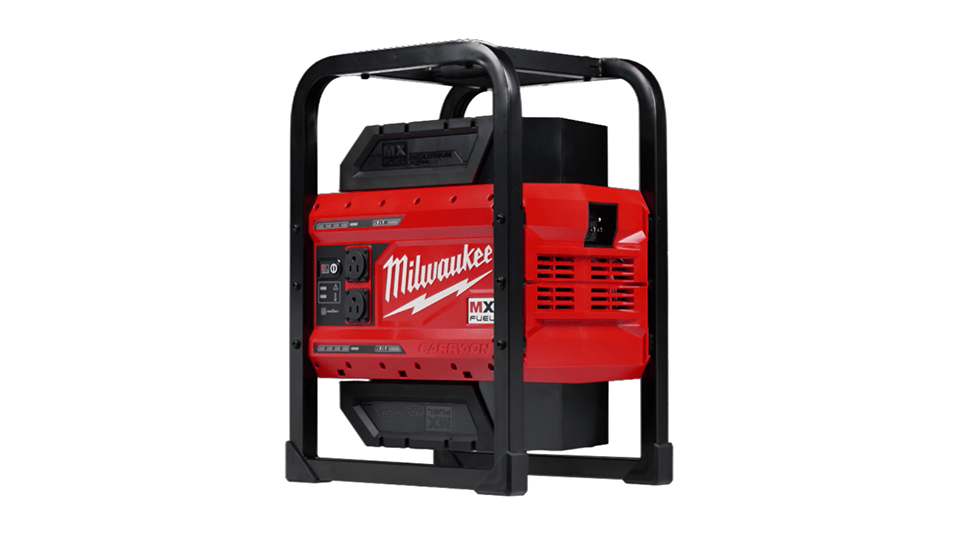

MX FUEL
3600W/1800W
PORTABLE POWER
SUPPLY
MXF PS-0
POWER MORE ON DEMAND
PORTABLE POWER ANYWHERE
MORE EFFICIENT POWER

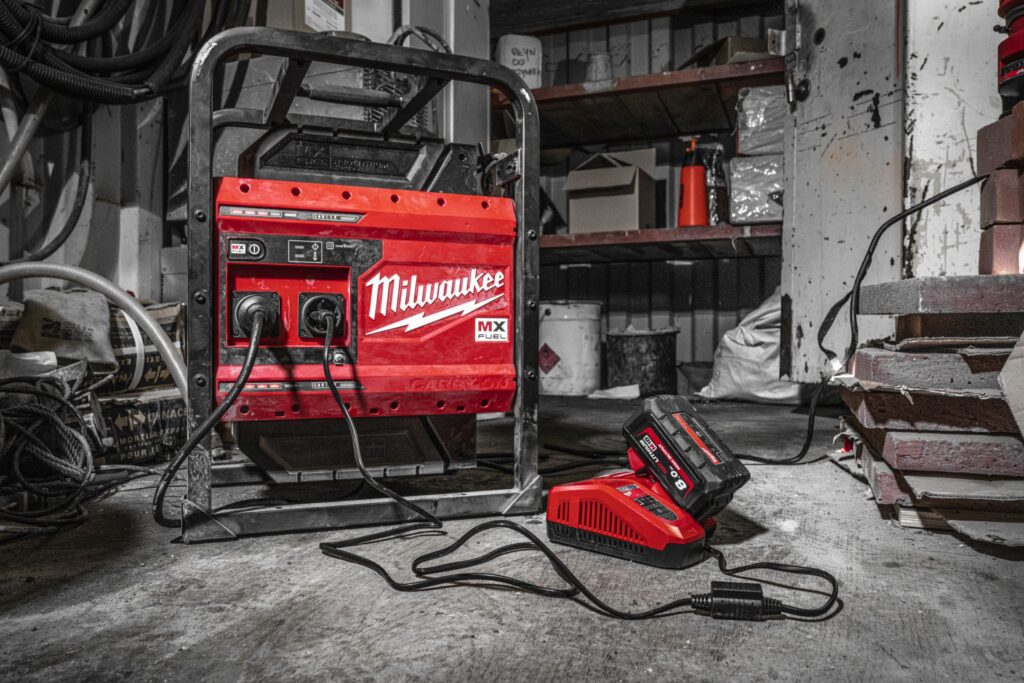

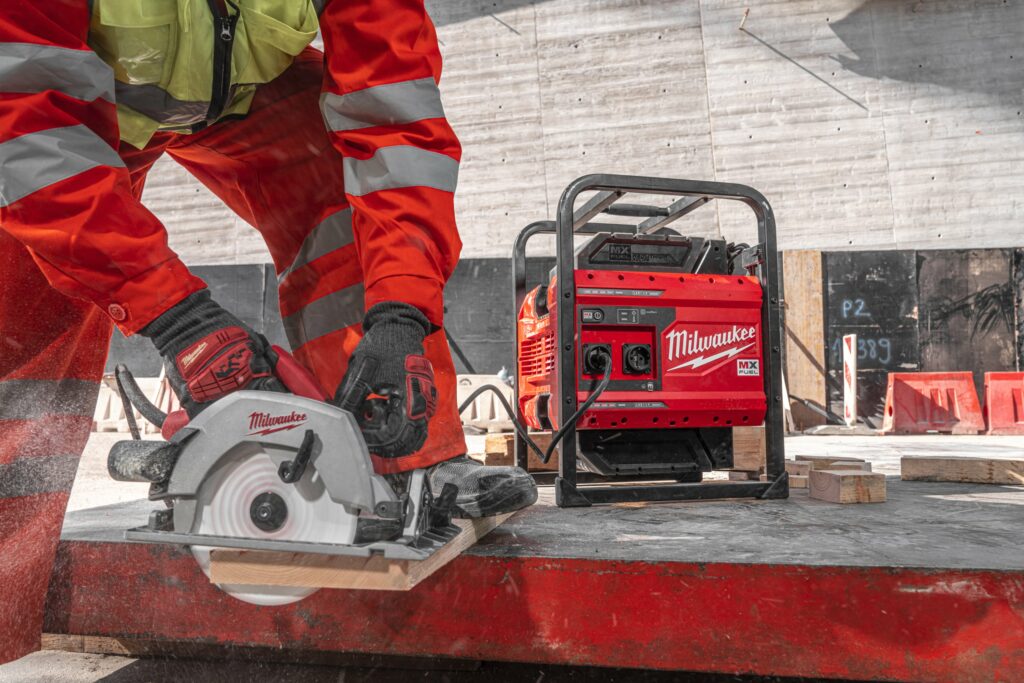

RUN-TIME WITH 2 XC BATTERIES
The CP203 Battery recharges in 45 Minutes. The XC406 Battery recharges in 90 Minutes.

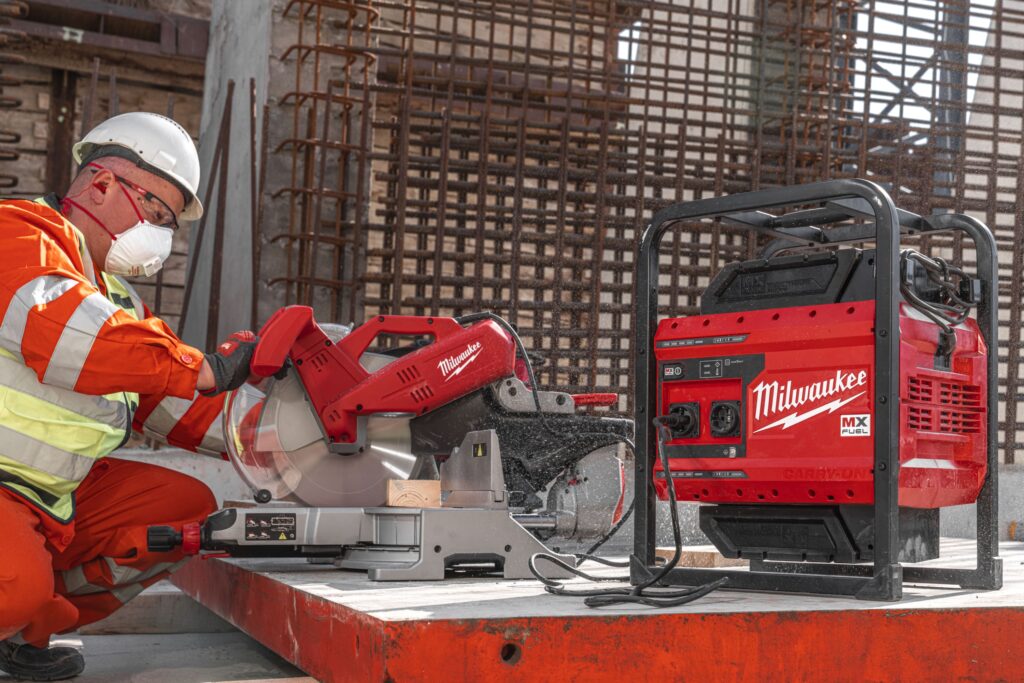

270 CUTS
305mm MITER SAW
1,210 CUTS

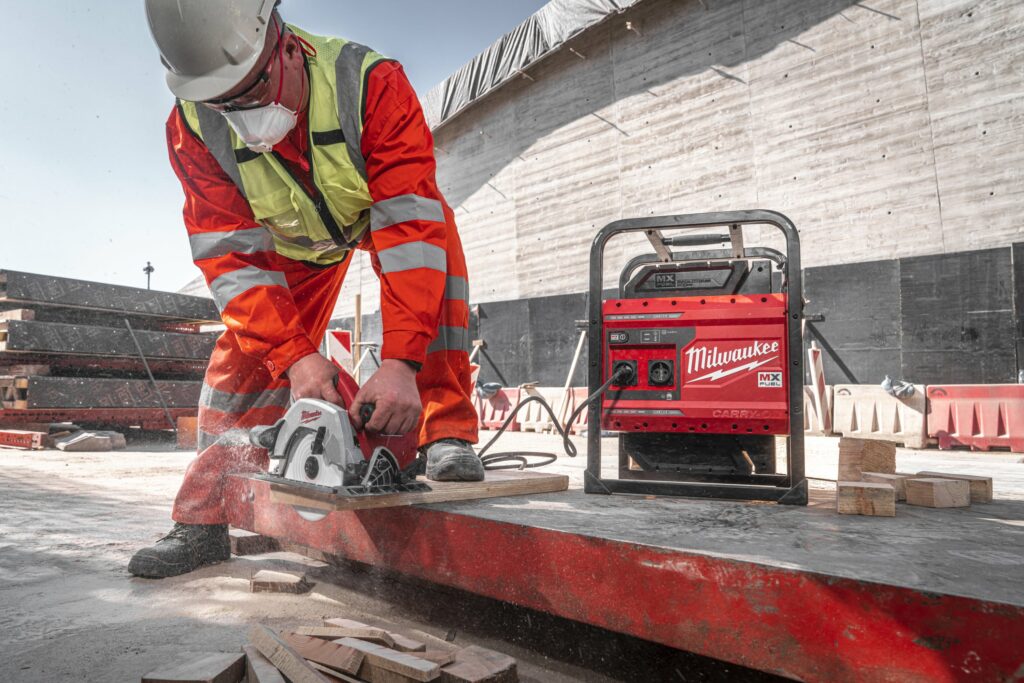

190mm CIRCULAR SAW

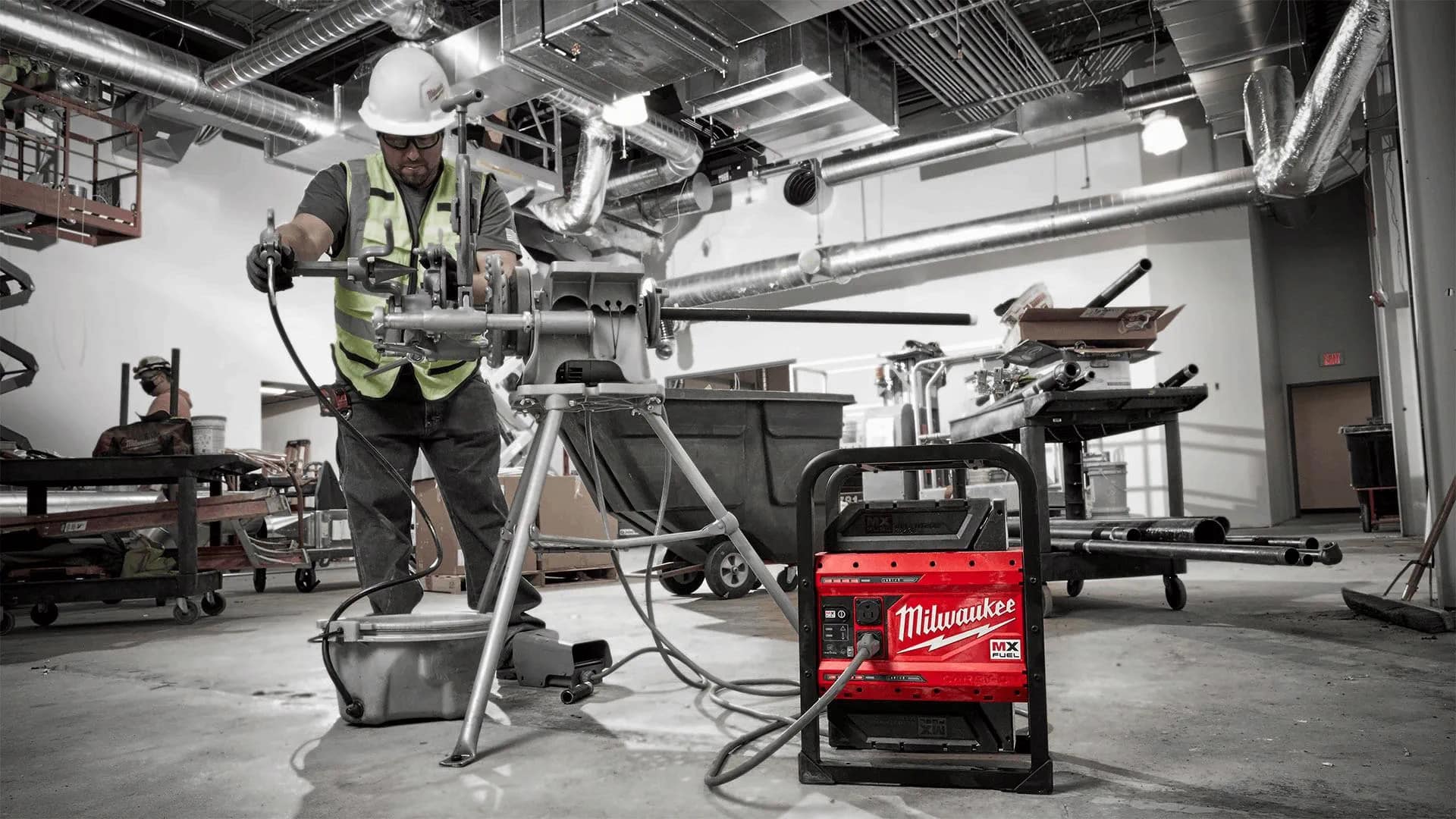

(55) 19mm THREADS
STATIONARY PIPE THREADER
6 M18B5 BATTERIES
W/ RAPID CHARGER
UP TO 8 HOURS

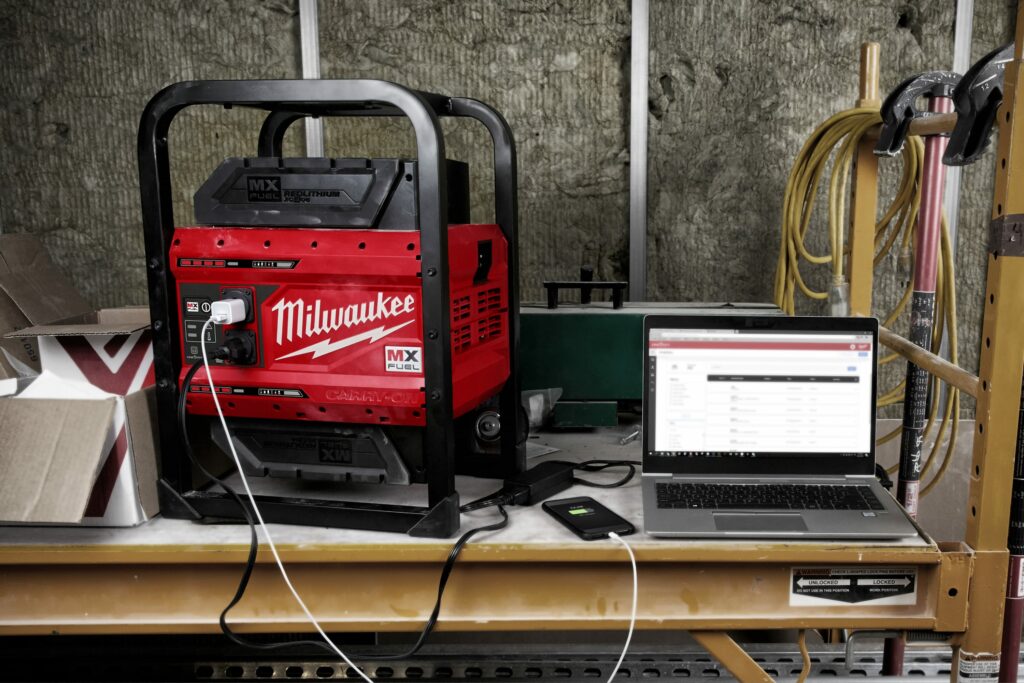

(4) PERSONAL DEVICES
40 HOT MEALS
1000W MICROWAVE

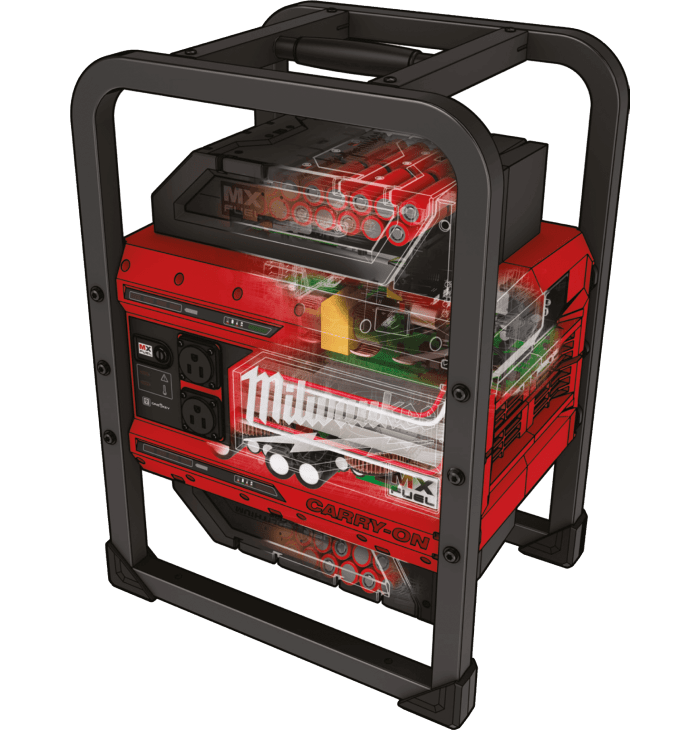

MX FUEL TECHNOLOGY
Click a Number for Details

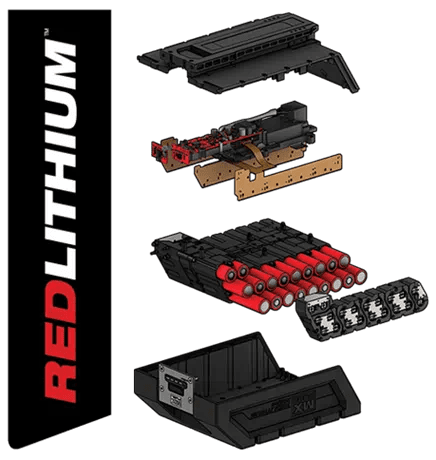

REDLITHIUM BATTERY PACK
With the REDLITHIUM Battery Pack, Milwaukee MX FUEL Equipment work like they should – faster, longer and with fewer recharges. The REDLITHIUM Battery Pack maximizes performance and delivers more run-time, power and recharges than any other lithium-ion battery pack.

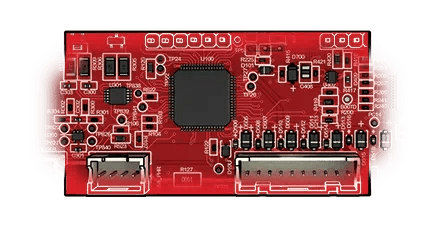

REDLINK PLUS INTELLIGENCE
Milwaukee’s game-changing REDLINK PLUS Intelligence hardware and software is the most advanced system of equipment electronics in the industry. REDLINK PLUS Intelligence integrates full-circle communication between machine, battery and charger. REDLINK PLUS Intelligence is technology that all equipment crave, but only Milwaukee provides.

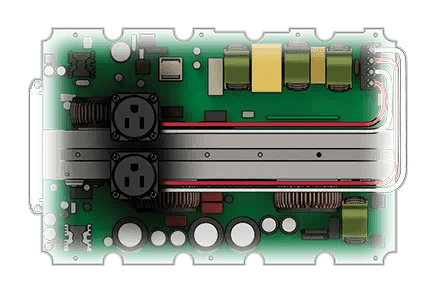

PURE SINE INVERTER
The portable power supply provides 3600 peak watts of pure sine inverter energy, powering everything from high demand 15A tools to sensitive electronics.
SPECIFICATION
Product version featured may vary by region
220-240V, 15A
Power everything from aggressive 15A tools to personal devices.
Single or Dual Battery Operation
Power with a single battery for lightweight portability, or two MX FUEL REDLITHIUM batteries for double the run-time.
Lockable Battery Bays
Keep your batteries safe and secure on site and on the go.
M18/M12 Charger Screw Mounts
Mount M18 & M12 chargers directly to the back for convenient carrying and storage.
Integrated MX FUEL Battery Charger
Easily charge one or two MX FUEL REDLITHIUM batteries by plugging in the provided charge cord or an extension cord directly into the MX FUEL CARRY-ON Power Supply.No external charger needed.
BATTERY System |
MX FUEL |
|---|---|
| Running Wattage | 1800W |
| Starting Wattage | 3600W |
| Outlet Type | (2) 220-240V, 15A |
| Sound Level | 60 dB(a) |
| Integrated Charger | YES – Sequential |
| Push Button Activation | YES |
| Weight – (2) MXF XC406 Batteries | 27.7kg |
| Weight – Without Batteries | 18.6kg |
| Ground Fault Isolated | YES |
| Intended for | (1) 15 Amp Tool |
| Recommended Battery | MXF XC406 |
| Application/ Equipment | Estimated Running Watts* |
Estimated Starting Watts* |
|---|---|---|
| Circular Saw – 190mm | 1400 | 2300 |
| Miter Saw – 254mm | 1800 | 1800 |
| Air Compressor – ¼ HP | 970 | 1600 |
| Work Light | 1000 | 1000 |
| Drill – 10mm | 600 | 1000 |
| Reciprocating Saw | 960 | 1920 |
| M18 Rapid Charger | 330 | 330 |
| Radio | 50 | 50 |
| Lights (4qty X 75 W) | 300 | 300 |
| Microwave | 1000 | 1000 |
| TV | 200 | 200 |
| Portable Fan | 40 | 120 |
| Laptop | 150 | 150 |
| *Wattages listed are approximate. Refer to tool or appliance for actual wattage. | ||
COMMONLY USED WITH

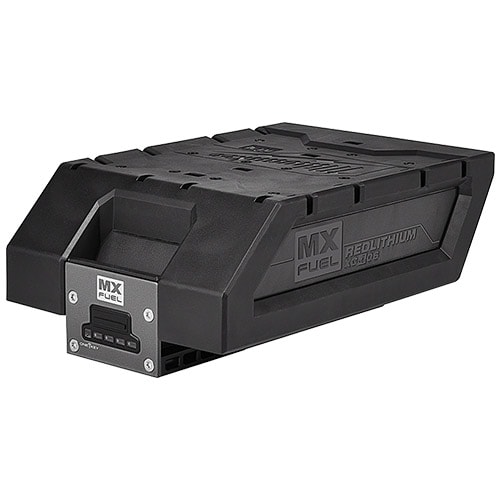

MX FUEL REDLITHIUM XC406 BATTERY PACK

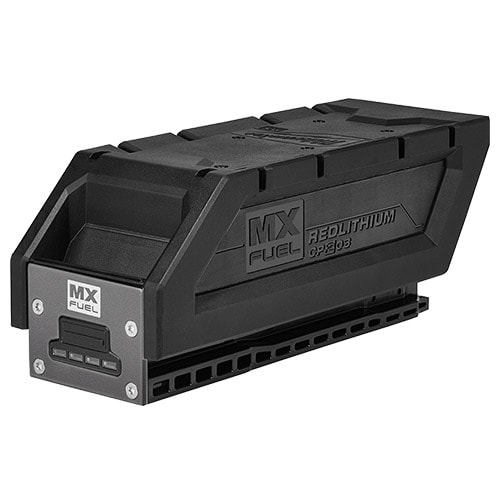

MX FUEL REDLITHIUM CP203 BATTERY PACK
