Home Power Tools Drilling

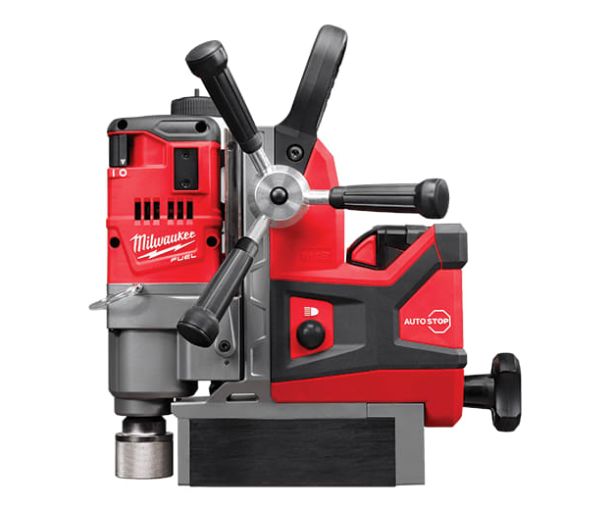

M18 FUEL™ 38mm Magnetic Drill

User Manual

M18 FMDP

POWERSTATE™ Brushless Motor: Delivers maximum power and longer motor life.
REDLINK PLUS™ Intelligence prevents damage to the tool and battery due to overloading or overheating
REDLITHIUM™-ION Batteries deliver more work per charge and more work over the life of the battery

Categories:

Drilling

Included

Where To Buy

Related Products

MX FUEL™ Core Drill Stand

M18 FUEL™ Percussion Drill

M18 FPD3

M12 FUEL™ Installation Drill Driver

M12 FDDXKIT

M12 FUEL™ Percussion Drill

M12 FPD2

Individual Purchase

Battery

M18™ 5.0Ah Battery (HKD$1188)

Charger

M12™ - M18™ Fast Charger (HKD$600)

Features

POWERSTATE™ Brushless Motor: Delivers maximum power and longer motor life.
REDLINK PLUS™ Intelligence prevents damage to the tool and battery due to overloading or overheating
REDLITHIUM™-ION Batteries deliver more work per charge and more work over the life of the battery
Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 8890 N of Holding Force
38mm Annular Cutter Capacity
13mm Twist Bit Capacity
2 Speed Gear Box: 400 / 690 RPM
Stroke Length: 146mm
Motor Head Adjustment: 130mm
AUTOSTOP™ Control Mode provides Enhanced Safety by protecting from over-rotation in bind-up situations

Range Spec

What's Included

M18 FMDP-0C0

製品仕様

018127029 (1)

Product Specifications

Battery platform

M18™ REDLITHIUM™-ION

FUEL Gauge

Yes

LED Light

Yes

No load speed (rpm)

400 / 690

Tool Reception

Weldon

Weight with battery pack if applicable (kg)

13.7kg (5.0Ah)

Voltage (V)

18

Chuck Size (mm)

13

Stroke Length (mm)

146

Max. holding power (at drill point pressure) (N)

8890

Max. depth broaching capacity (mm)

50

Max. diameter broaching capacity (mm)

38

Max. drilling solid bit (mm)

13

M18 FUEL™ 38mm Magnetic Drill
